Bio-Med Devices offers many breathing circuits for our ventilators as well as the ventilators of other manufacturers. We make both disposable and re-usable breathing circuits in a variety of lengths and can custom design one to fit your particular needs. Additionally, we also offer three disposable test lungs (1 Liter, 500 ml and 64 ml). Disposable exhalation valves are also available. Please contact Bio-Med Devices for information regarding our complete line of patient circuits.
All of our breathing circuits are MRI compatible.
|
DISPOSABLE CIRCUITS FOR BIO-MED DEVICES VENTILATORS |
|
| KEY: 4 = 4' Length 5 = 5' Length 6 = 6' Length 7 = 7' Length 8 = 8' Length 9 = 9' Length H = includes an extra length of tubing for use with a humidifier O = with oxygen tee and adapter T = with water Trap N = has a removable patient wye (helpful in certain nasal CPAP applications) X = without extra tubing for humidifier |
|
| CV2 & CV2+ | INFANT 20011, 20011N |
| PEDIATRIC 400114H, 400118 |
|
| ADULT N/A |
|
| CV2i & CV2i+ (Built-in) | INFANT 20304, 2030N, 20306, 20309, 2030N, 2030O |
| PEDIATRIC N/A |
|
| ADULT N/A |
|
| CV2i+ (Stand-alone) | INFANT 200114H, 20011N, 20011A |
| PEDIATRIC N/A |
|
| ADULT N/A |
|
| CV3 & CV3+ | INFANT N/A |
| PEDIATRIC 400114H, 400118 |
|
| ADULT 800114H, 8002A, 8002A7, 8002A9 |
|
| CV4 & CV4+ | INFANT 200114H, 20011N, 20011A |
| PEDIATRIC 400114H, 400118 |
|
| ADULT 800114H, 8002A, 8002A7, 8002A9 |
|
| IC-2A | INFANT N/A |
| PEDIATRIC 400114H, 400118 |
|
| ADULT 8002A4X, 8002A7, 8002A9, 80011 |
|
| MVP-10 | INFANT 20304, 2030N, 20306, 20309, 2030N6, 2030O |
| PEDIATRIC N/A |
|
| ADULT N/A |
|
For schematics of all our circuits, including Reusables, (Adobe Acrobat, 1,214K), click here.
Below are some of our more popular disposable breathing circuits.
80015
BiPAP Circuit
20 per case
Patient Hose - 22mm ID x 72" (smooth bore)
also includes - Holding Arm, 22mm x 22mm adapter

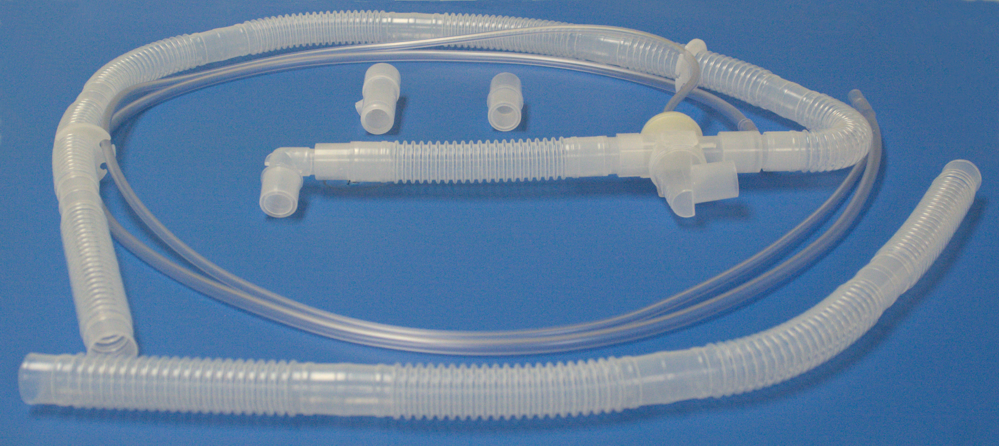

80011
Adult Circuit
20 per case
Patient Hose - 22mm ID x 42"
also includes - 22mm ID x 24" hose, 22mm x 15mm elbow, 22mm x 22mm adapter, Temperature tee, Holding Arm

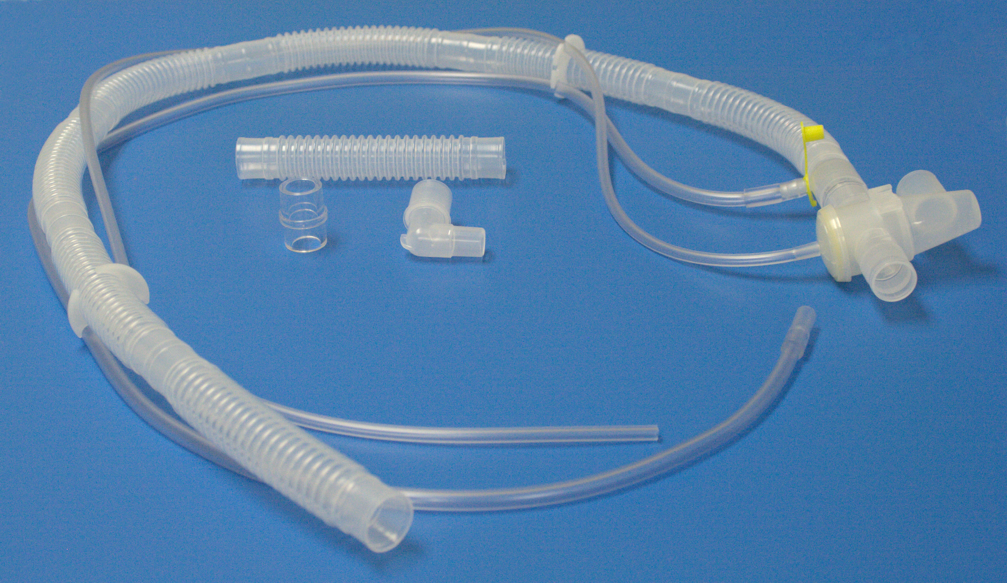

8002A
Adult Circuit
20 per case
Patient Hose - 22mm ID x 42" (also available- 60", 84", or 108" long)
also includes - 22mm ID x 6", 22mm x 22mm adapter, Holding Arm

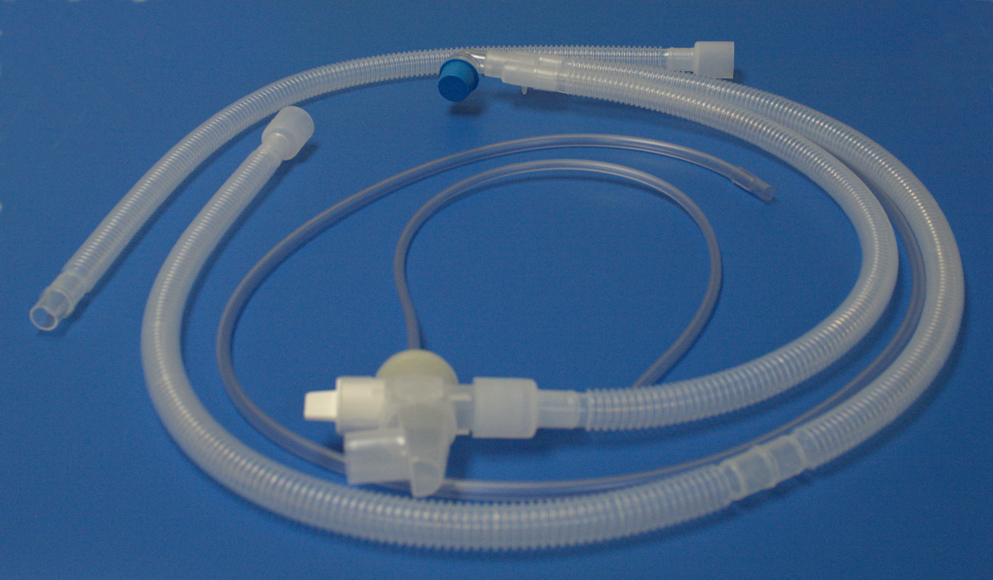

40011
Pediatric Circuit
20 per case
Patient Hose - 15mm x 48" w/22mm adapter
also includes - 15mm x 24" w/22mm ID & 15mm OD adapters", Holding Arm

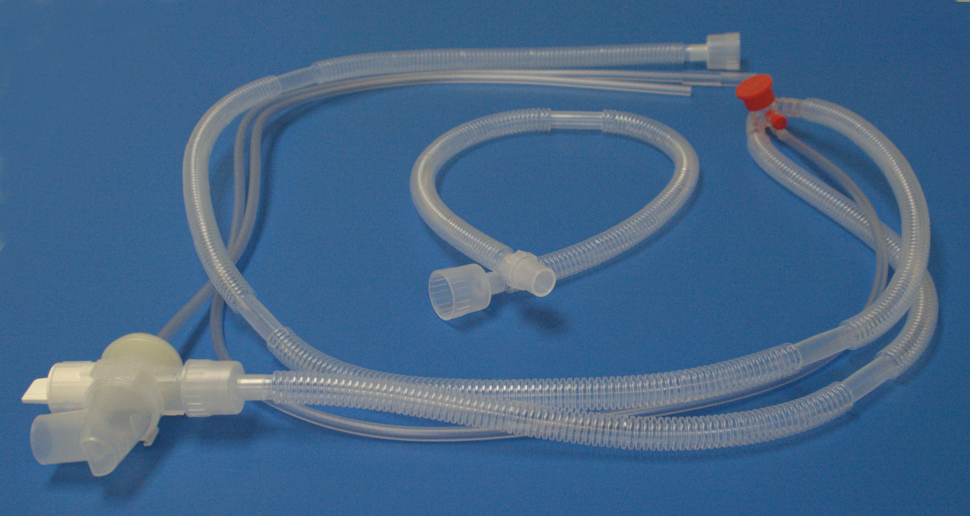

20011
Infant Circuit
20 per case
Patient Hose - 3/8"ID x 48" w/22mm ID adapter
also includes - 3/8" ID x 24" w/22mm ID & 15mm OD adapters, Holding Arm, Test Cap
2030
Infant Circuit
20 per case
Patient Hose - 3/8" ID x 48"
also includes - Test Cap
