Crossvent Circuit Setup

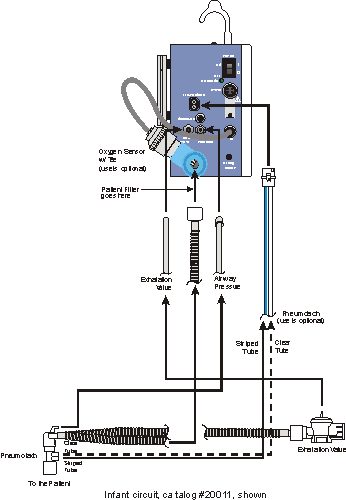

This image depicts how to connect the adult patient circuit, catalog #20011, to the Crossvent 2+.  The connections are the same for all Crossvents depending on options available.

When a humidifier is used, use the supplied 2 foot hose to connect the Crossvent to the humidifier and then connect the patient circuit to the output of the humidifier.
